Fluorescent Penetrant Testing of Aluminum Forgings: Principles, Standards, and Operational Best Prac

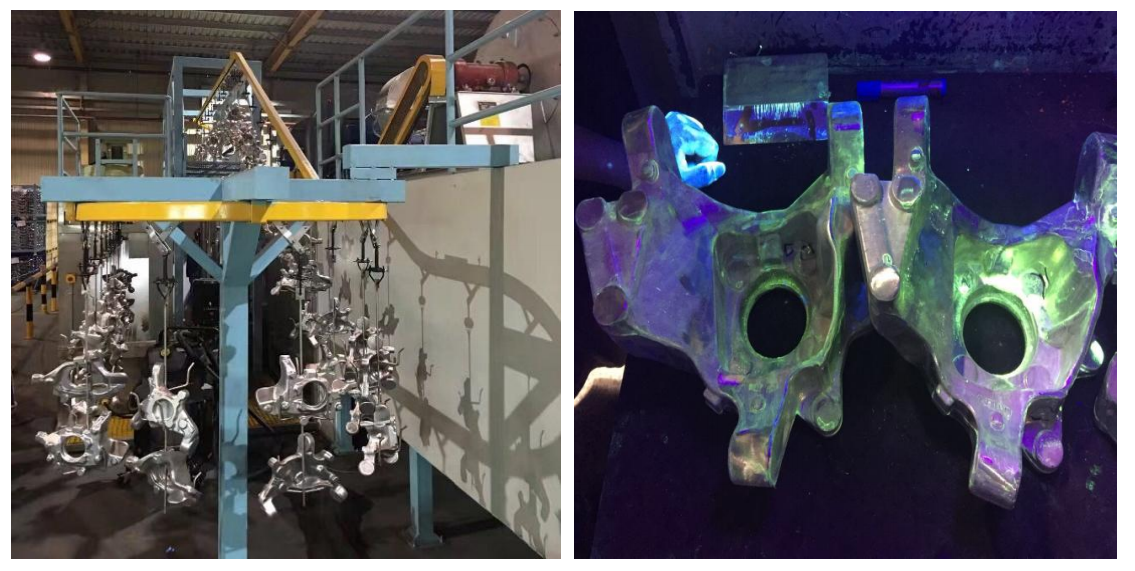

Fluorescent penetrant testing (FPT) of aluminum forgings is fundamentally a liquid penetrant inspection method for surface-breaking defects. It leverages capillary action to draw fluorescent dye-containing penetrant into open flaws such as cracks, laps, and cold shuts; under black light illumination, these flaws emit bright yellow-green fluorescence for easy identification. It is one of the core quality control measures for surface integrity verification of aluminum alloy forgings prior to delivery. Notably, FPT cannot detect internal or subsurface defects—ultrasonic testing (in accordance with GB/T 6519) must be deployed separately for internal flaw evaluation, as the two methods serve complementary roles in forging quality assurance. Why FPT Is Indispensable for Aluminum Forgings Common surface-breaking defects in aluminum alloy forging processes include laps, cracks, cold shuts, peeling, delamination, porosity, and shrinkage. Among these, laps account for up to 70–80% of all defects in precision die forgings. Fine laps often have extremely narrow openings and depths of less than 3 mm, making them undetectable via visual inspection or acid etching alone—FPT or eddy current testing is required for reliable detection. Applicable Standards and Scope GB/T 8545-2024 Aluminum Alloy Forgings(implemented October 1, 2024, replacing the 2012 edition): The core domestic specification for aluminum alloy forging quality assessment, which explicitly states that crack or lap identification on forging surfaces shall be performed using penetrant testing in accordance with GB/T 18851. GB/T 42791-2024 General Technical Specification for Aerospace Aluminum Alloy Forgings: Applies to high-end forgings for aviation use, including die forgings, free forgings, and rolled rings for critical applications. GB/T 32249-2015: Specifies general technical requirements for aluminum and aluminum alloy die forgings, free forgings, and rolled ring forgings. The penetrant testing process itself shall conform to the GB/T 18851​ series of standards. International and industry-specific references include ISO 3452, ASTM E1417, and AMS 2644​ (the basis for sensitivity classification). Standard Process Flow Per GB/T 18851 and industry best practices, the standard workflow consists of 7 steps: Pre-cleaning (the most critical step): Surfaces must be thoroughly cleaned using solvents, alkaline cleaners, or ultrasonic cleaning to remove oil, scale, machining chips, rust, and other contaminants. Inadequate pre-cleaning blocks flaw openings and prevents penetrant ingress, leading to false negative results. Penetrant application: Spray, brush, or immersion methods may be used to ensure full coverage of the test area, with the surface kept wet throughout the dwell period. Penetration dwell time is typically 5–30 minutes, adjusted based on material type, target flaw characteristics, and ambient temperature. Excess penetrant removal: Procedures vary by penetrant type: Water-washable: Rinse directly with clean water (water temperature 15–25°C, pressure ≤0.2 MPa; excessive pressure must be avoided to prevent washing out penetrant trapped in flaws). Post-emulsifiable: Apply emulsifier first, then rinse with water; this delivers a cleaner background and is suitable for shallow, wide flaws or rough surfaces. Solvent-removable: Wipe surfaces with lint-free cloths dampened with solvent; this is primarily used for field inspection of large-scale components. Drying: Use hot air or compressed air. Drying is mandatory for water-washable penetrants and wet developers. Temperature must be controlled to avoid drying out penetrant trapped in flaws, which would compromise indication formation. Developer application: Apply dry powder or wet developer in a uniform thin layer, then allow a 5–15 minute dwell time for the developer to draw trapped penetrant out of flaws, amplifying the indication for observation. Black light inspection: Conduct inspections in a darkened area using a black light with a central wavelength of 365 nm. UV irradiance at the test surface shall be no lower than 1000 µW/cm²​ (or per the requirements of the applicable specification). Yellow-green fluorescent areas indicate the presence of surface-breaking flaws. Post-inspection cleaning: Thoroughly remove all residual developer and penetrant after inspection to prevent chemical corrosion that could affect subsequent machining or in-service performance. Penetrant Type Selection and Sensitivity Grading Per AMS 2644, fluorescent penetrants are classified by removal method and sensitivity level, as outlined below: Penetrant Type Sensitivity Level (AMS 2644) Typical Applications Water-washable Level 1–2 (Low–Medium) High-volume batch screening, general surface defect detection Post-emulsifiable Level 3 (High) Shallow, wide flaws, rough-surfaced forgings, aerospace components Solvent-removable Level 1 (Low) Field inspection of large-scale or in-service components Sensitivity levels range from Level 1 (low, detecting larger flaws) to Level 4 (ultra-high, detecting the smallest possible surface openings). Higher sensitivity does not always equate to better suitability—selection must align with the applicable inspection standard and the forging’s acceptance criteria. Post-emulsifiable Level 3 penetrants are widely adopted for high-requirement applications such as aerospace forgings, with processes controlled per ASTM E1417. Key Control Points and Common Pitfalls ⚠️ The following operational errors directly impact detection reliability: Inadequate pre-cleaning: Contaminants block flaw openings, preventing penetrant ingress and causing missed detections. Over-rinsing: Excessive water pressure or prolonged rinsing washes out penetrant trapped in flaws. Excessive drying temperature: Causes penetrant in flaws to dry out prematurely, making it impossible for the developer to draw it to the surface. Insufficient black light irradiance: Low UV intensity makes faint indications invisible, leading to missed small flaws. Ambient light interference: Inadequate darkening of the inspection area reduces fluorescence contrast, compromising detection accuracy. It is critical to reiterate that FPT only detects surface-breaking defects. Internal flaws such as subsurface delamination, inclusions, internal cracking, and coarse grain structure must be evaluated separately via ultrasonic testing (GB/T 6519), macroetch flow line inspection, or metallographic examination (GB/T 3246)—FPT does not cover these defect types. Indication Evaluation During inspection, record the morphology, size, location, and brightness of fluorescent indications, then classify and accept/reject the component per the applicable acceptance criteria (e.g., forging drawings, GB/T 8545, or customer-specified technical requirements). General interpretation guidelines include: Bright linear indications: Suspected cracks or laps, requiring further metallographic confirmation. Rounded or dot-shaped indications: Porosity, exposed inclusions, or shrinkage. Feathered or branched indications: Characteristic of laps. For safety-critical components or batches requiring 100% inspection (e.g., automotive chassis parts, aerospace structural components), fully automated FPT production lines with batch immersion systems can be deployed to achieve full coverage rather than relying on sampling.
